9INET2 Motorsports

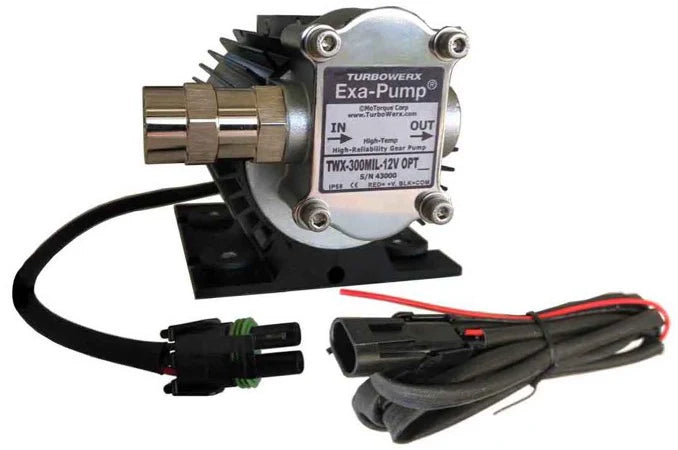

HIGH-TEMPERATURE WATERPROOF SCAVENGE PUMP
HIGH-TEMPERATURE WATERPROOF SCAVENGE PUMP
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Full Mil-Spec Certification Features and Specifications:
- TWX-300MIL-12V - 3gpm open-flow, 12VDC@1.0-1.5A*
- Rated to pump fluids up to 190C (375F)
- >60psi head-pressure
- IP69k qualified seals
- Large 3/4-16 ORB SAE J475 ports and oversize 25mm phosphor-bronze pump gears
- Entire pump/ports easily rotated within heatsink 0-360º
- Self-prime from >2M with wet gears
- Pump flow reversible via polarity reversal
- Viton 200C armature shaft oil seal
- Class C 220C AIW Polyamidelmide Armature Windings
- 30cm FEP 200C Teflon Wire UL-1332 #16 harness with Aptiv Weather-Pack connector
- 2m FEP 200C Teflon Wire UL-1332 #16 extension harness with Aptiv Weather-Pack connector
- Viton 200C o-ring seal
- CE certified
- 50,000 hour-rated German or Japanese bearing set
- 10,000 hour-rated oversize brush set, 260C Mica brush holder, and twin LC-filter electrical noise suppression:
- Motor magnets secured by rivets + high-temp epoxy
- Hard chrome-plated motor housing
- Hard chrome-plated motor rear plate
- Hard chrome-plated pump head + cover plate
- Black-anodized extruded aluminum heatsink
- Rubber vibration isolated mounts with chrome-plated stainless-steel inserts
- All stainless fasteners
- 3kg weight
- Includes external 150µ screen pre-filter and three pairs of -10AN, -8AN, and -6AN port adapters:
- After initial priming from new, pump can intermittently run "dry" (without pumping fluid) up to 10 minutes before internal seals must be rewetted by pumping fluid.
