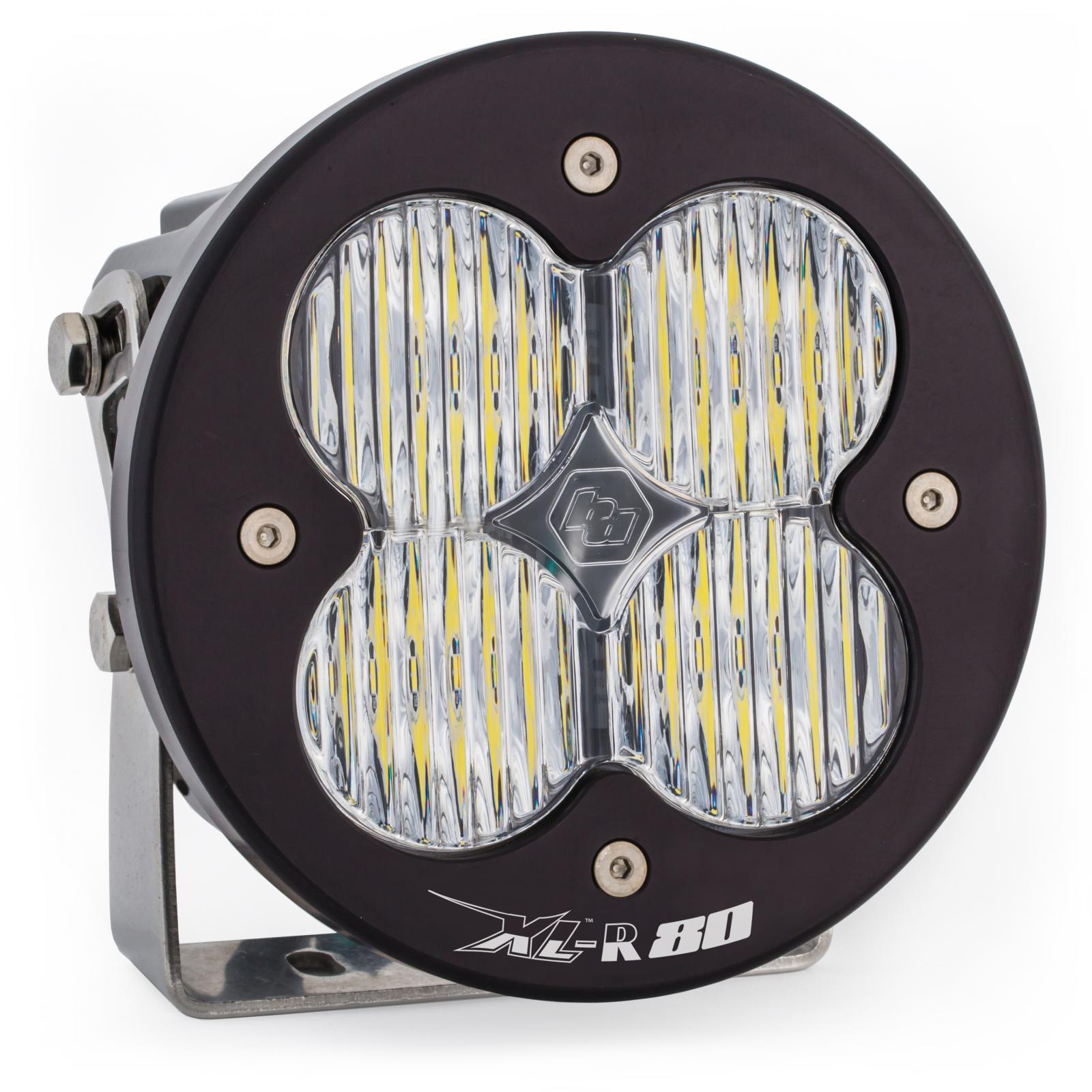

LED Light Pods Clear Lens Spot Each XL R 80 Wide Cornering Baja Designs

The Baja Designs XL-R 80 auxiliary LED light takes your off-road lighting to the next level, offering superior visibility and increased brightness. Using our trademarked high-speed spot reflectors, the XL-R 80 delivers a longer and wider beam pattern.

This powerful next-generation LED technology provides 18 percent greater distance and increased intensity over our previous model, pushing an impressive 9,022 raw lumens per light. Perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.

Similar to the XL Pro model, the XL-R 80 features a 20 percent dimming option, a powder-coated housing, and an anodized bezel. Designed for those seeking reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.

Please Note, single light pods do Not come with a wiring harness. The applicable wiring harness for this light is 640115.

ELS Scores:Effective Lighting Score (ELS)
XL80 Driving Combo (Clear): ELS 62 degree / 5.0/ 392'/ 8278
XL80 Wide Cornering (Clear): ELS 66/ 6.1/ 202'/ 8063

Lens Pattern Options:

Driving Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

Wide Cornering: The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

Lens Color:

Clear: The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

Baja Amber:This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Safely Driving LEDs at 100 percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

• Aces Term Id: 1069|7
• Brand: Baja Designs
• Aaiaid: FGXX
• Discontinued Item: False
• Dim Length: 10.0
• Dim Width: 10.0
• Dim Height: 8.0
• Dim Unit: in
• Weight: 5.0
• Weight Unit: lb
• Youtube Video: https://youtu.be/G9rvxf9ZF8M
• Mfg Label: LED Light Pods
• Upc: 819314022154.0
• Availability: Available
• Universal: Yes
• Sold As: Each
• Series: XL R 80 Series
• Lumens: 9,500
• Vehicle Type: ATV/UTV|Jeep|Truck/SUV
• Light Pattern: Wide Cornering
• Housing Type: Hard Anodized and Powder Coated Cast Aluminum
• Life Span Expectancy: 49,930 Hours
• Lens Material: Hard Coated Polycarbonate
• Lens Color: Clear
• Ik10 Compliant: IK10 Compliant (Mechanical Impact Testing)
• Color L: Black
• Wattage Amp: 80W / 5.79A
• Brackets Included: Yes
• Waterproof Rating: IP69K Waterproof
• Bezel Material: Billet Machined Aluminum
• Bracket Material: Stainless Steel
• Prop 65 Warning: CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
• Country Of Origin: USA
